LC LED-N525TRLY4D: 5mm Red & Yellow LED (130 Degree)

LC LED 5mm Red and Yellow LED 130 Degree (Anode)

PRODUCT DESCRIPTION
(1) RoHs Compliant Part	(4) Moisture & UV Resistance Epoxy Len
(2) Super Bright Bi-Color 5mm Red & Yellow LED Water Clear	(5) Sun Light Viewable LED Lamp
(3) Excellent color mixing characteristics	(6) Rugged design suitable for both indoor & outdoor use

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
DC Forward Current (1)	45	mA
Peak Pulse Forward Current (1)	125	mA
Avg. Forward Current	30	mA
Operating Temperature	-40 to +100	^0C
Storage Temperature	-40 to +100	^0C
Lead Soldering Temperature	260^0C for 3 seconds (4.0mm or 0.157 inch from Body)

(1) Pulse width of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

Electro-optical Characteristics (Ta = 25⁰C)

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
Forward Voltage (Red)	VF	IF = 25mA	1.7		2.1	V
Forward Voltage (Yellow)	VF	IF = 25mA	1.8		2.3	V
Reverse Voltage	VR	IR = 100mA			5	V
Dominant Wavelength (Red)	lD	IF = 25mA	625		635	nm
Dominant Wavelength (Yellow)	lD	IF = 25mA	590		592	nm
Viewing Angle	2q1/2	IF = 25mA		130		Deg.
Luminous Intensity (Red)	IV	IF = 25mA	1,800		3,000	mcd
Luminous Intensity (Yellow)	IV	IF = 25mA	1,800		3,000	mcd

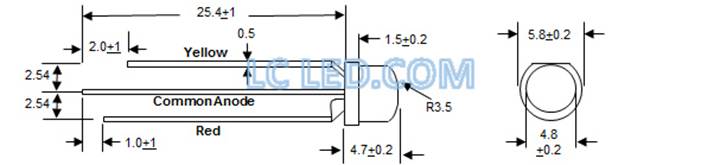

DEVICE DRAWING
